High-Rise Facade Cleaning Robot
K3
Curtain-Wall Cleaning Robot
A high-rise facade system for glass and stone curtain walls, combining strong adsorption, water recycling and remote visual monitoring.
Curtain WallsHigh-RiseGlass Facades
Product Gallery
Clean product views.
01 / 05
Overview
Built for real-world deployment.
K3 is designed for automated cleaning of glass and stone curtain walls. Multiple adsorption devices, self-locking protection, four-direction sensing and dynamic image feedback support high-altitude work, while a water-circulation system filters and reuses wastewater.
Eight adsorption devices with self-adsorption propulsion
Four-direction sensors and dynamic image feedback
Self-locking safety protection
Water-circulation filtration and recovery
Operates across vertical and inclined facade surfaces
Applications
Where it works.
Glass curtain walls01
Stone facades02
High-rise towers03
Inclined buildings04
Roof glass05
Specifications
Official product data.
Key dimensions, performance and operating details for evaluation.
Cleaning efficiency
720 m²/h
Daily cleaning capacity
Up to 2,000 m²
Operating height
Up to 600 m
Battery endurance
3 h ± 30%
Adsorption force
500 kg
Obstacle clearance
10–30 cm protrusions
Wind resistance
Level 12 / 32.7–36.9 m/s
Wastewater filtration
Up to 95%
Surface angle
0–90°
More visuals
System details and real deployments.

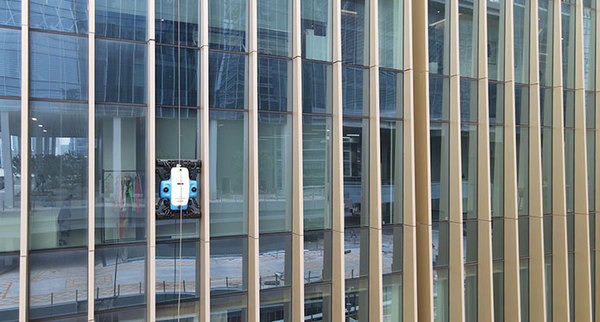

Facade deployment
K3 working across a large commercial curtain-wall surface.

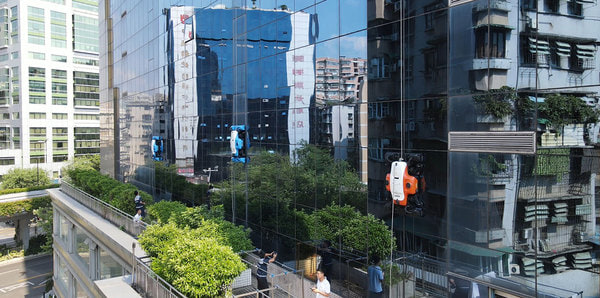

High-rise operation
Remote visual monitoring and redundant protection support work at height.

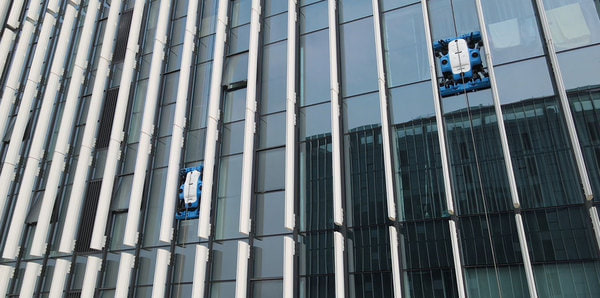

Surface coverage
Designed for flat glass and stone facade cleaning across vertical and inclined surfaces.
